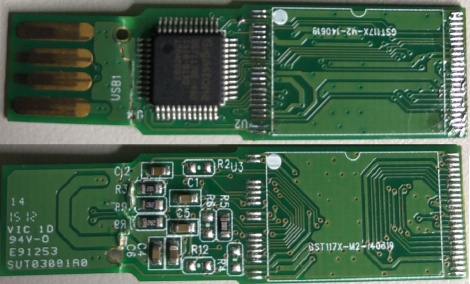

GST1176
| GST1176E-28B 45 de 84 93 1x1 |
Layout
IT1181 556_548 Xor 6771_256
Mix
Input
Order 0
Software Bad Bytes
Block 128
Group 1
Block Pair
Block 0x400000
Page 0x4000
Divide
Field Block Number
Value 0x40
Assembler
Block Number
Block Size 0x800000
Bank Space 0x4000
Image Cut 0x7200
Banks 00 / 0x000 / 0x3ff
Actions
Scan
Comments
Serg for forum 10965
SW Bad Bytes is two 5a 5a
Need remove both
| GST1176E-48B 45 de 94 93 1x1 |
Layout
IT1181 556_548 Xor 6771_256
Mix
Input
Order 0
Software Bad Bytes
Block 256
Group 2
Block Pair
Block 0x400000
Page 0x4000
Divide
Field Block Number
Value 0x40
Assembler
Block Number
Block Size 0x800000
Bank Space 0x4000
Banks 00 / 0x000 / 0x3ff
Actions
Scan
Comments
Serg for forum 10958
| GST1176E-48B 45 de a4 82 2x1 |
Layout
IT1181 556_548 Xor 6771_256
Mix
Input
Order 0/1
Block Pair
Block 0x200000
Page 0x2000
Join by Page
Parts 2
Page 0x400000
Divide
Field Block Number
Value 0x40
Cross Block
Field Block Number
Block 0x400000
Parts 2
Assembler
Block Number
Block Size 0x400000
Bank Space 0x4000
Image Cut 0xe000
Banks 00 / 0x000 / 0xfff
Mix 2 / 0x4000
Actions
Scan
Comments
by Arvika
Need use cut BB manually before use this model
